Nhiệt kế mỏ hàn Anritsu HS series

Hiệu: Anritsu

Xuất xứ: Japan

Model: HS series

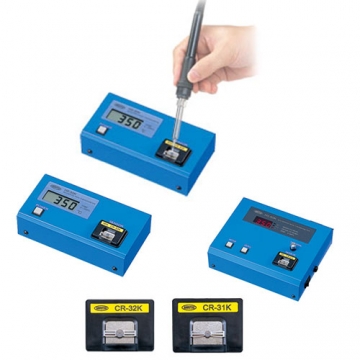

Model HS series thermometers designed for exclusive use with the CR series soldering iron tip temperature probes. The HS-30K measures temperatures only, while the HS-50K can measure temperature, resistance between soldering iron tip and ground, and leakage voltage.

HS-30K  Temperature probe sold separately.

HS-50K  Temperature probe sold separately.

Leakage voltage and the resistance between soldering iron tip and ground can be measured only when using a three-wire soldering iron with temperature control capability.


Đặc tính kỹ thuật nhiệt kế mỏ hàn Anritsu HS series

Model		HS-30K	HS-50K
Display		LCD	LED
Input type		Temperature (Thermocouple : Type K)	Temperature (Thermocouple : Type K) Resistance (between the iron ahead ground) leak electric voltage
Measurement range		0 to 500°C	Temperature : 0 to 500°C Resistance (between the iron ahead ground) : 0.0 to 99.9 Ω leak electric voltage : 0.0 to 99.9mV (RMS)
Resolution		1°C	Temperature : 1°C Resistance (between the iron ahead ground) : 0.1 Ω leak electric voltage : 0.1mV
Measurement accuracy		± (0.3% of reading + 1)°C	Temperature : ± (0.3% of reading + 1)°C Resistance (between the iron ahead ground) : ± (4% of reading 0.3)Ω leak electric voltage : ± (3% of reading +0.3)mV
Reference junction compensation accuracy		±0.5°C (at 23°C±10°C)	±0.2°C (at 23°C±10°C)
Temperature coefficient		± (0.03%/°C) of measurement range except 23°C±10°C	± (0.01%/°C) of measurement range except 25°C±10°C
Environmental limit	Operation	10 to 40°C,0 to 85%RH (without dew)	10 to 40°C,0 to 85%RH (without dew)
	Storage	0 to 50°C,0 to 85%RH (without dew)	-20 to 40°C,0 to 85%RH (without dew)
Linearlizer		Analog linearlizer method (Compliant with IEC 60584-1(1995))	Digital linearlizer method (Compliant with IEC 60584-1(1995))
Power supply		4"AA"(LR6) Alkali Batteries	AC 100V to 240V
Battery Life		approx. 180h	—
Dimensions		152(W)×45(H)×50(D) mm	180(W)×55(H)×150(D) mm
Weight		approx. 460g	approx. 950g
Accessories		Manual, 4 Batteries	Manual, Spare fuse, Power supply cord, Ground cord
