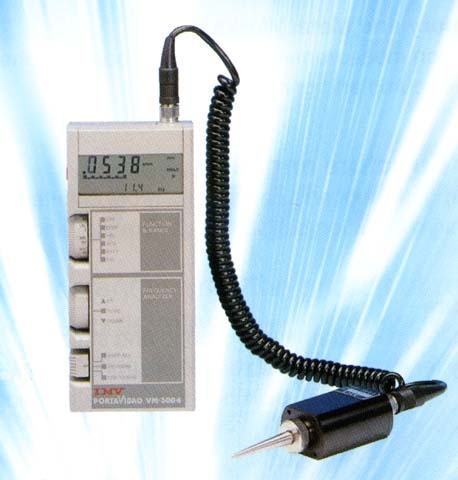

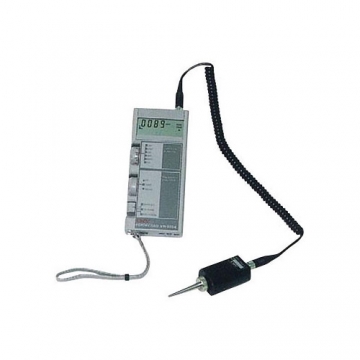

Model

ＶＭ-3004ＳＩ

Frequency Range

10Hz ～ 1,000Hz

Measuring Range
Acceleration (ACC)

Velocity (VEL)

Displacement (DISP)

1, 10, 100 m/s2 3-ranges,
Min 1 digit : 0.01 m/s2
1, 10, 100 mm/s 3-ranges,
Min 1 digit : 0.001 mm/s
10, 100, 1000 μmp-p 3-ranges,
Min 1 digit : 0.01μmp-p

Indication

EQP, RMS value (ACC, VEL), EQP (DISP)

Accuracy
　Frequency Response
　Sensitivity Error
　Sensitivity Switching Error
　Meter Linearity
　Frequency I/O Level Difference
　Frequency selectivity
　Frequency display Error

±5％（20Hｚ～500Hz）,  (10Hz～1,000Hz)
±5% (at 80Hz)
±2% (at 80Hz)
±0.5% of F.S.(at 80Hz)
±5% of F.S.
Q ≒ 10
±5%

Output
　AC OUT
　DC OUT
　TUNE OUT

0 ～ ±1V (with a load≧10kΩ)
0 ～ +1V (with a load≧10kΩ)
0.1～1V/10～100Hz or 100～1000Hz

Power Supply
　Battery
　External battery
　AC Power supply

6F22:1pce, Life time:16hrs approx.at continuous use
9 ～ 18 V, 20mA max.
100VAC (with optional AC adapter)

Calibration Output

80Hz sinusoidal wave output
Level is adjustable using variable resistor in battery box

Dimensions & Weight

Main unit:80Wx160Hx36Dmm, 380g
Pickup: 28Wx70Hx38Dmm, 165g
Probe: φ8x62 mm, 33g

No.

Name

Q'ty

Remark

1

Vibration pickup VP-3004

1

Electro-dynamic velocity type

2

Vibration pickup cable

1

1.5ｍ

3

Probe

1

4

Output cable

2

1.5ｍ

5

Small driver

1

(-) driver

6

Battery

1

6F22

7

Case

1

8

Instruction manual

2
