Criterion Temperature & Humidity Benchtop Chambers
Our largest benchtop humidity chamber
The Criterion temperature/humidity chamber series provides an economical and space-saving solution for a variety of testing requirements. The chamber's interior size is 3.5 inches wider than traditional benchtops, yet the exterior is 20% narrower. The BTL-433 model uses 115V power, meaning no special power hook-ups.
- Lowest temperature: -20 or -70°C (-4 or -100°F)
- Highest temperature: 180°C (354°F)
- Humidity range: 10 to 95% RH
- Chamber size: 4 cubic feet
- Touch-screen Watlow F4T programmer with Ethernet access
The four cubic foot workspace is the largest to be found in a benchtop unit, while requiring less footprint than even smaller comparable chambers. The vertical configuration saves bench space, plus the refrigeration’s ventilation design allows installation against a wall for even more space savings.
The programmer includes a temperature alarm as just one part of ESPEC's three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.
ESPEC Expertise in Humidity Control
Controlling humidity in a small environmental chamber can be especially challenging. ESPEC expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:
- An external steam generator allows expanded range and is easy to maintain.
- A separate de-humidification coil improves low humidity control and range.
- Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)
- Direct water supply connection is standard, with options for water filtering and recirculating water tank.
Features
- High performance and quiet operation (65 dBa)
- Space-saving footprint, designed for flush installation to wall
- Stainless steel exterior
- Full thermal break around doorframe

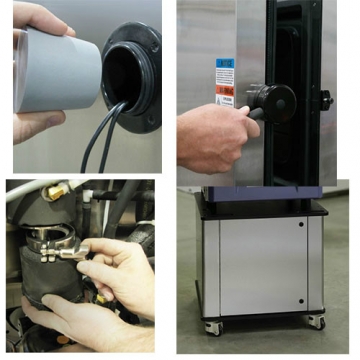

- One 50mm (2") diameter cable port on left, with flexible silicone plug
- Three levels of overheat protection, plus overcool protection
- Easy lift-off service panels, electrical access on left
- Detachable eight-foot power cord with plug
- Direct water supply connection for continuous operation (supply tank optional)
- ETL listed electrical panel conforming to UL 508A

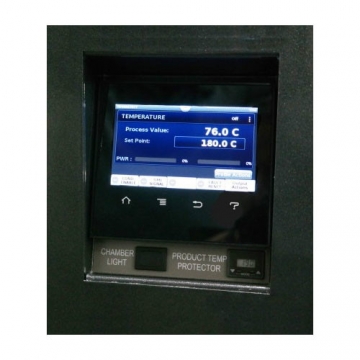

Touch-screen programmer/controller with Ethernet
- Watlow F4T with touch-screen and Ethernet port standard
- Save 40 profiles with up to 50 steps each (ramp, soak, jump, auto-start, end)
- One event relay for external device control, plus specimen power interlock relay for safety
- ESPEC exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-485 ports available, as well.
|
Model / Link |
Interior Dimensions |
Interior Volume |
Temperature Range |
Humidity Control |
Change Rate |
|
19.6" x 15" x 23.6" |
4 cu. ft. |
-20 to 180°C |
Yes |
up to 1.5°C/min. |
|
|
19.6" x 15" x 23.6" |
4 cu. ft. |
-70 to 180°C |
Yes |
up to 2.75°C/min. |

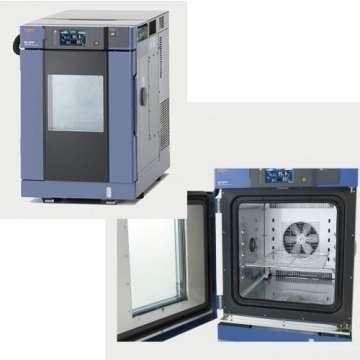

SH Series Benchtop Chambers
Premium features for the ultimate in testing flexibility.
Are you looking for the smallest humidity chambers possible to get your testing done? Still need all the capabilities of larger chambers, though? This is the model series for you! Available in two sizes, the smaller models are the smallest humidity chambers in the world!
Easy to install and own:

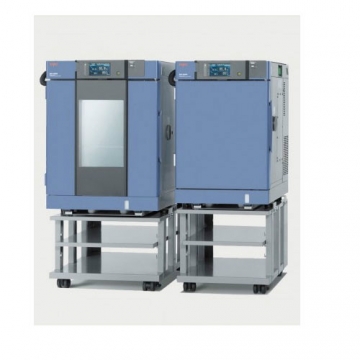

- The SH models are small enough be placed underneath a benchtop, or on top.
- Designed for integration with other test equipment to make a complete test stand.
- The smaller models run on standard 115V power, enabling easy installation anywhere.
- These humidity chambers include an removable water storage tank, avoiding the need for water hook-ups. The tank will last up to a week at 85°C/85% and can be refilled without interrupting the test. (Option for direct water connection is available.)
- Extremely quiet operation as low as 52 dba, suitable for quiet labs or offices.
Features
ESPEC'S EXCLUSIVE PROGRAM CONTROLLER:
- User-friendly touch-screen operation
- Three different ‘constant mode’ settings can be saved for single-setting operation
- Store 40 cycling programs, with up to 99 steps each
- Programs may be written on a PC and uploaded via USB
- The trend-graph display shows a record of setpoints and actual values
- Operation data can be downloaded as needed, or continually, to USB
- System alarms are stored in memory for historical review
- Built-in timer functions allow the chamber to be started or shut down automatically
- Pattern Manager Lite PC software for program editing and datalog viewing/exporting, to support USB functionality
- Also included is Web Manager remote monitor/control via Ethernet/browser
CHAMBER DESIGN FEATURES:
- Premium design with a space-saving footprint and quiet operation suitable for offices and small labs
- One 1" diameter cable port on the right side (Note: previous model series also included standard port on left)
- Removable humidity water tank for SH models (direct water connection optional)
- One adjustable stainless steel shelf
- Temperature (& humidity) output terminals
SAFETY FEATURES:
- Three levels of overheat protection
- Humidifier boil-dry protector for SH models
- Specimen power supply control terminal
- Main power circuit breaker
SH Series Benchtop Model Comparison
|
Model / Link |
Interior Dimensions |
Interior Volume |
Temperature Range |
Humidity Control |
Change Rate |
Notes |
|
SH-222 |
12" x 10" x 12" |
0.8 cu. ft. |
-20 to 150°C |
Yes |
up to 3°C/min. |
|
|
SH-262 |
12" x 10" x 12" |
0.8 cu. ft. |
-60 to 150°C |
Yes |
up to 3°C/min. |
|
|
SH-642 |
15.7" x 15.7" x 15.7" |
2.2 cu. ft. |
-40 to 150°C |
Yes |
up to 2.5°C/min. |
Compare to Criterion series |
|
SH-662 |
15.7" x 15.7" x 15.7" |
2.2 cu. ft. |
-60 to 150°C |
Yes |
up to 2.5°C/min. |
Compare to Criterion series |
|
SH-242 |
12" x 10" x 12" |
0.8 cu. ft. |
-40 to 150°C |
Yes |
up to 3°C/min. |
|
